What Is Required? ▲ ▼
- Touch will need to be installed and operational.
- Ensure the Raffle Ticket Barrel Printer has been added as a peripheral to Touch. Refer HERE for more information.
What To Consider? ▲ ▼
- It is recommended that Venues with more than one Touch terminal, configure their print devices in the Back Office HERE.
When Is It Used? ▲ ▼
Used to configure the settings for the Raffle Ticket Barrel print device. The Raffle Ticket Barrel print device is used the printing of raffle tickets to be placed in a barrel for drawing a winner later.
Screens ▲ ▼

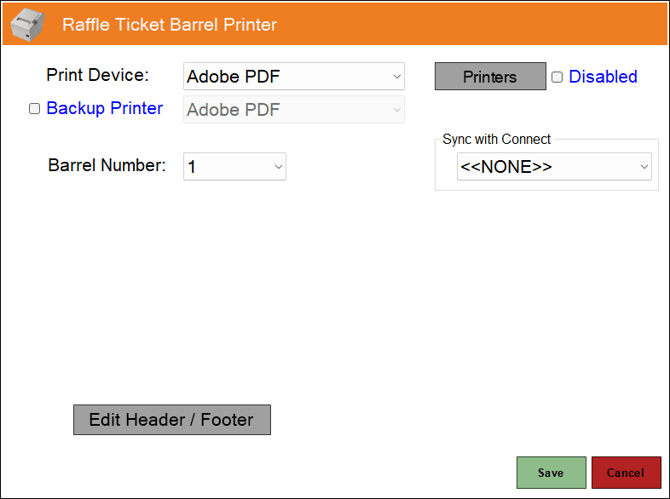

Raffle Ticket Barrel Printer Screen ▲ ▼
To access, select the Raffle Ticket Barrel Printer option from the Peripheral Type drop-down list in the Add New Peripheral screen, and then enter an appropriate Description for the peripheral being added (For example, Raffle Ticket Barrel Printer) and select OK. The above screen will then be displayed. Used to configure/manage/view Raffle Ticket Barrel print devices for Touch.

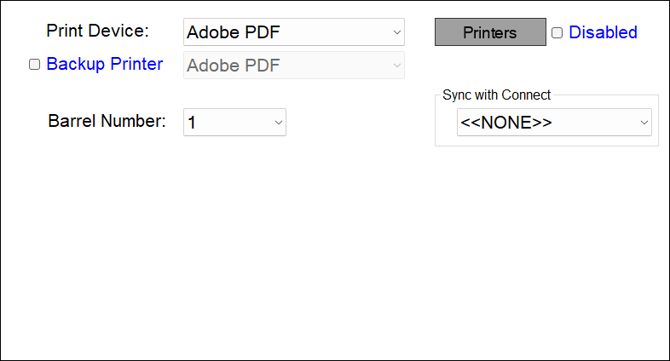

- Print Device - Select from the drop-down list the print device for printing of raffle tickets.
- Printers - Select to open the Print Devices screen to configure settings.
- Disabled - Toggle select to enable/disable the print device.
- Backup Printer - Select from the drop-down list the print device to be designated as the backup print device. Refer HERE for more information.
- Barrel Number - Displays/Enter the number identifying the Raffle Ticket Barrel print device for the printing of raffle tickets.
- Synchronise With Back Office - Select from the drop-down list the Back Office option from which this print device will inherit it's settings. Any changes made to their settings in Back Office will automatically be applied when the Touch device receives an update. This option is only available to Windows Printers with the Graphical Printing option selected.

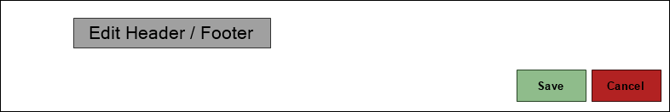

- Header/Footer - Select to open the Header/Footer screen to configure Raffle Tickets. Refer HERE for graphical and HERE for non-graphical printing information. Header/Footers can also be configured for peripherals set up in the Back Office.
