Peripherals



Subjects     ▲ ▼

• About

• How To?

• Screens



About      ▲ ▼

• When Is It Used?



When Is It Used?      ▲ ▼

Used to create/maintain peripherals (such as printers) for Touch. This will ensure that their settings are consistent across all Touch terminals that are synced to the Back Office. where This option is recommended for Venues that operate more than one Touch terminal. For sites that only operate one Touch terminal, it is recommended that peripherals are setup in Touch, HERE.



How To?     ▲ ▼

• Add A Peripheral



Screens      ▲ ▼

• Add New Peripheral
• Peripheral

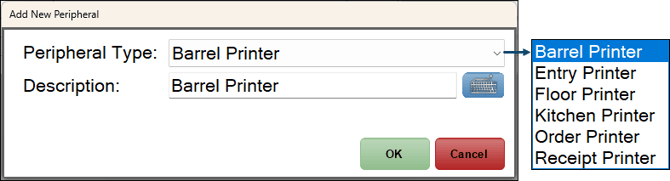

Add New Peripheral Screen     ▲ ▼





To access, select the peripherals menu option in Touch Settings in Back Office.



• Peripheral Type - Select from the drop-down list one of the following:
  • Barrel Promotion Printer - Used for Barrel Draws.
  • Entry Printer
  • Floor Printer - Graphical printers only.
  • Kitchen Printer - Graphical and standard (ESC/POS) Kitchen printers supported.
  • Order Printer - Graphical printers only.
  • Receipt Printer - Graphical printers only.
• Description - Enter an appropriate description.





Peripheral Screen     ▲ ▼





To access, select the peripherals menu option in Touch Settings in Back Office.



Sections      ▲ ▼

• Header
• Grid
• Footer



Header Section      ▲ ▼





• The filters at the top of the screen can be used to limit the number of rows displayed in the grid. The filters include the following types:
  • Full/Partial Texts- The filter fields of this type are: Description.
  • Drop-down Lists- The filter fields of this type are: Peripheral Type.
  • Search Screens - The filter fields of this type are: Locations.
  • Top # Filter
• Apply
• Reset



Grid Section      ▲ ▼





Lists the peripherals along with their Type, Description, Graphical indicator and Locations they are assigned to. The Graphical indicator is checked when the peripheral is configured in graphical mode. Select the Locations option to open the Locations screen to select the Locations the peripheral will be assigned to.





Footer Section      ▲ ▼





• Add - Select to open the Add New Peripheral screen to add a peripheral.
• Copy - Select to copy the selected peripheral.
• Edit - Select to edit the selected row.
• Save - Select to save changes.
• Import - Select to import previously exported peripherals.
• Export All - Select to export all peripherals and additional setting to an xml file.
• Delete - Select to delete the selected peripheral.
• Printer Commands - Select to open the Printer Commands screen to configure all the Esc/POS printer commands in the Back Office. These will automatically be sent to each Touch terminal.
• Close - Select to exit.
