Access The Configuration Tabs

This outlines How To Access The Configuration Tabs in OrderAway, TouchMini, TouchMini v2 and Venue Hub.

swiftpos Back Office integrates with the Venue Manager tool offering Venues the ability to manage and configure their OrderAway and TouchMini web-based platforms in support of both remote and in-Venue ordering.

OrderAway ▲ ▼

Access to the OrderAway configuration tabs is accessed via Venue Manager OR via the swiftpos Back Office > Administration > Cloud Connectivity > Locations tab - By selecting the Cloud Client ID button that has a Cloud Client ID value displayed opposite the required Location.

Once selected the OrderAway menu will be presented with the OrderAway Profiles menu option by default. This will provide access to the Profiles' Configuration tabs by selecting the Name of a Profile listed in the OrderAway Profiles screen. Further menus can be accessed such as, Payments and Venue Hub.

Refer to OrderAway for more information.

TouchMini And TouchMini v2 ▲ ▼

To access the Configuration tabs, do as follows:

In Venue Manager

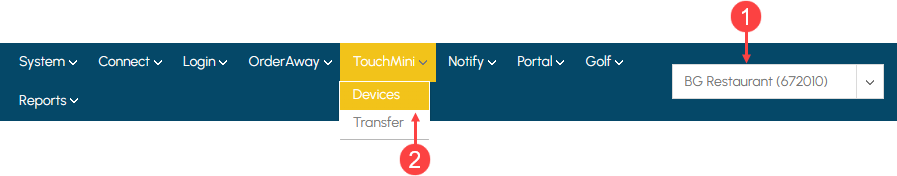

- Once Venue Manager has been accessed, ensure the correct Cloud Client has been selected from the drop down list. Refer to How To Access Venue Manager for more information.
- Select the Devices option from the TouchMini menu.

In Venue Manager continued ...
- Once the TouchMini Devices screen is displayed, select the name of any one of the devices listed, to access it's configuration tabs.

In Back Office

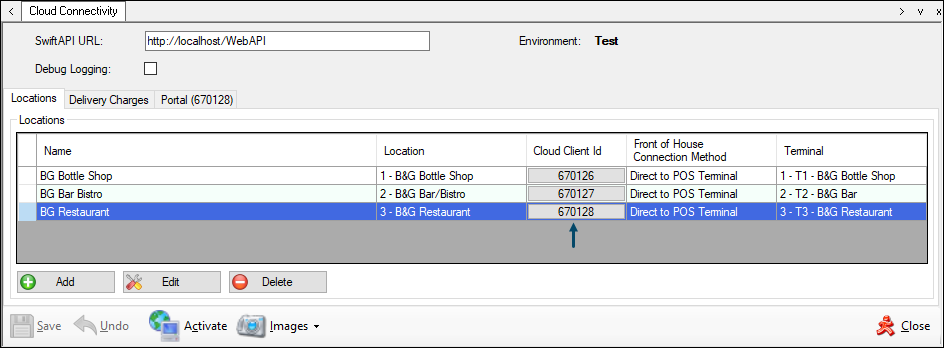

- Select the Cloud Connectivity option from the Administration menu.
- Once the Cloud Connectivity screen is displayed, select any one of the listed Location's Cloud Client ID buttons, to access its menus in Venue Manager.

In Back Office continued ...
- Once Venue Manager has been accessed, ensure the correct Cloud Client has been selected from the drop down list.
- Select the Devices option from the TouchMini menu.

In Back Office continued ...
- Once the TouchMini Devices screen is displayed, select the name of any one of the devices listed, to access it's configuration tabs.

Refer to TouchMini or TouchMini v2 for more information.

Venue Hub ▲ ▼

Access to all the Venue Hub related configuration tabs is via Venue Manager and can be accessed either from swiftpos Back Office or from a Web Browser. Refer to How To Access Venue Manager for more information.

Refer to Venue Hub for more information.

End of article. ▲
