Print Member Card (#810)

This provides an overview of the Print Member Card (#810) POS Key used in Touch.

Swiftpos v10+
Ensure this POS Key is added to the appropriate Keyboard Layout using the Designer. Refer HERE for more information.
Ensure a Member Card Printer has been configured as a Peripheral at the Swiftpos Touch terminal.

If required, access to this POS Key can be restricted by the Clerk Security feature.

Used to print a Member's membership card.

Review About and ensure the steps outlined HERE are addressed.
In Keyboard Designer, select the Print Member Card (#810) POS Key that has been added to a Layout.
Ensure it is given an appropriate Caption. For example, Print Member Carrd.

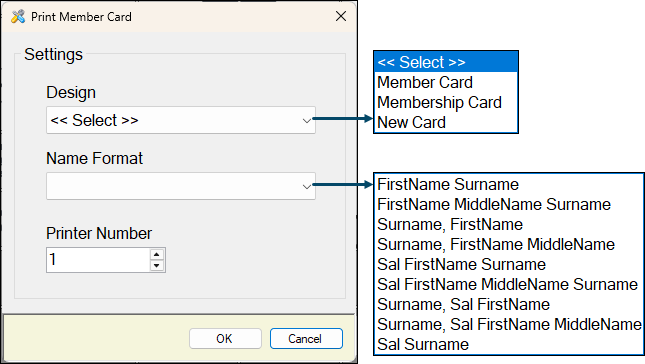

Select the More Settings option to display the Settings screen.
Once configured, ensure a Full Update is sent to all the Touch terminals that will be using the POS Key. Refer HERE for more information.

Design - Select from the drop-down list one of the designs created and designed using the Member Card Designer.
Name Format - Select from the drop-down list one of the options available.
Printer Number - Displays/Enter the number identifying the Printer to be used to print Member Cards.
