Transactions

TouchMini v2 - Screens

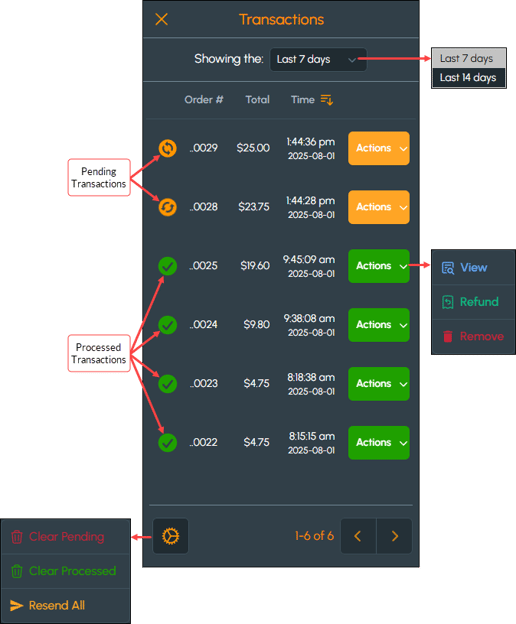

To access, select the Transactions menu option from the TouchMini Menu. Used to action/view transactions that have been transacted on the TouchMini device to date.

To exit the Transactions screen, select the X option in the top left-hand corner of the screen to exit and return to the TouchMini Menu.

Footer Section ▲ ▼

Settings Icon - Select the icon in the bottom left-hand corner of the screen to access one of the following options:
- Clear Pending - Select to clear all pending transactions. Once cleared they will no longer appear in the grid.
- Clear Processed - Select to clear all processed transactions. Once cleared they will no longer appear in the grid.
- Resend All - Select to resend all transactions that are listed in the grid.

Grid Section ▲ ▼

Displays the Order #, Total and Time of the transactions listed. Toggle select the Time column heading to toggle the order (ascending/descending) in which the transactions are listed. It also, displays the following along with each transaction:

A status icon - The icon displayed here will either be:
- For a Pending transaction.
- For a Processed transaction.
An Actions option - Select from the following:
- View - Select to open the Transaction screen to view the transaction. Refer HERE for more information.
- Refund - Select to refund the transaction. Refer HERE for more information.
- Remove - Select to remove the transaction. Refer HERE for more information.

Header Section ▲ ▼

Select from the Showing the drop-down list one of the following:

Last 7 days - Select to only show the transactions in the last 7 days.
Last 14 days - Select to only show the transactions in the last 14 days.

End of article ▲
