Swagger Testing / Diagnosing

Subjects      ▼

• What Is It?
• How Is It Accessed?
• How Is It Used?

What Is It?      ▲ ▼

Swagger is a testing and diagnostic tool that comes with the swiftpos Admin API.

How Is It Accessed?      ▲ ▼

It can be accessed by adding the /Swagger/UI/index suffix to the swiftpos API URL configured. For example, localhost/SwiftAPI/Swagger/UI/index.

How Is It Used?      ▲ ▼

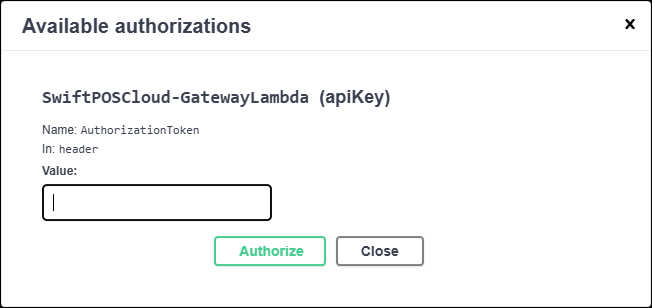

Get An API Authorisaction Key      ▲ ▼

• All SwiftAPI calls require an API authorisation key, ApiKey. To obtain one:
  • Select Authorisation and then Get
  • Populate the Parameter Values with the correct data and then select the Try it out button to execute the Get call.
  • Copy the API Key that is generated. This will be required to be pasted into the Value of the ApiKey Parameter when testing other SwiftAPI calls.

Test API Calls      ▲ ▼

• Select the Call to be tested and paste the API Authorisation Key obtained above into the ApiKey parameter, and complete the rest of the parameters.
• Select the Try it out button to execute the Get call.
• Scroll up to the top of the section for an explanation of the response code returned.

End of article.      ▲
