Metcash Scan Data v2.5

3rd Party Integration with swiftpos Service Monitor

This outlines the information and the steps that are needed to familiarise oneself with the with the Metcash Scan Data v2.5 interface in Service Monitor.

Subjects      ▼

• Screens

Screens      ▲ ▼

• Metcash Scan Data

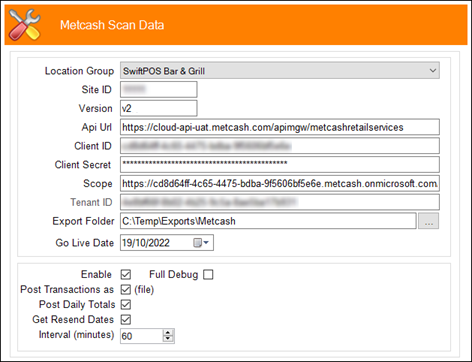

Metcash Scan Data Screen      ▲ ▼

To access refer to How To Access The Service Monitor for more information. Used to configure the settings required for the Metcash Scan Data v2.5 interface.

• Location Group - Select from the drop down list the Location Group (Venue) for which the credentials apply.
• Site ID - Displays/Enter the Venue's Site ID provided.

• Version - Displays/Enter the version of the API (as provided) that is currently supported.
• Api Url - Displays/Enter the Metcash URL provided
• Client ID - Displays/Enter the Client ID provided.
• Client Secret - Displays/Enter the Client Secret provided.
• Scope - Displays/Enter the Scope provided.
• Tenant ID - Displays/Enter the Tenant ID provided.
• Export Folder - Displays/Enter/Select the folder from which files will be exported.
• Go Live Date - Displays/Select the date from which sales data will be retrieved for initial export. The data selected will be included as part of the initial export.
• Enable - Select to ensure the Interface is enabled.
• Full Debug - Select to enable. This should only be enabled when recommended.
• Post Transactions as (file) - Select to ensure sales data is exported as JSON files. It is recommended that this option is selected.
• Post Daily Totals - Select to ensure daily totals are exported. It is recommended that this option is selected.
• Get Resend Dates - Select to ensure resend dates retrieved. It is recommended that this option is selected.
• Interval (minutes) - Displays/Set the Interval in minutes each time sales data will be retrieved and exported.

End of article      ▲
