EFT47 - Verifone Cloud

Touch - Peripherals

This provides information regarding the EFT47 - Verifone Cloud peripheral in Touch.



Refer HERE for Support information



---

Subjects      ▲ ▼

• About
• Resources
• Screens



---

About      ▲ ▼

• What Is Required?

• What Is Supported?
• What To Consider?
• When Is It Used?



What Is Required?      ▲ ▼

• Swiftpos v10.78.2+
• .Net 4.6.2

• C++ 2015 redistributable



What Is Supported?      ▲ ▼

• Surcharging
• Tipping



What To Consider?      ▲ ▼

• Sites must have a current Software Enhancement Licence to use this feature.
• If a printer is connected, then ensure an actual printer is selected. Do NOT use the <<Default Printer>> option because the device cannot see it.



When Is It Used?      ▲ ▼

EFT47 - Verifone Cloud is recommended for all EFTPOS devices using Oolio Pay.



---

Screens      ▲ ▼

• EFTPOS Settings

• Verifone Cloud Settings

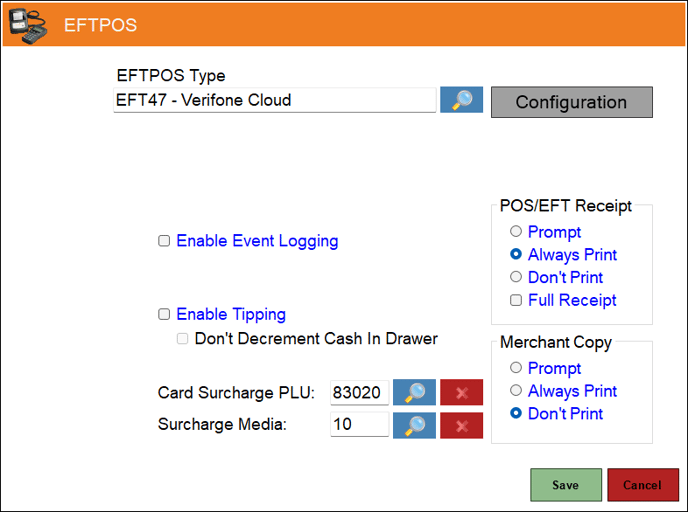

EFTPOS Settings Screen      ▲ ▼





• EFTPOS Type - Select from the drop-down list the EFT47 - Verifone Cloud option. Refer HERE for more information.
• Configuration - Select to open the Verifone Cloud Settings screen.
• Enable Event Logging - Select to enable. It is recommended that this is enabled when testing or when troubleshooting an issue.
• Enable Tipping - Select to enable.
  • Don't Decrement Cash In Drawer - Select to ensure that Cash received as a Tip is held in a Tip jar or some other Tip vessel and is NOT added to the Cash Drawer. If unselected, it is assumed that the Cash received as a Tip is added to the Cash Drawer until distribution at a later date. Refer HERE for more information.
• Card Surcharge PLU - Displays/Select the PLU to be assigned to the Surcharge.
• Surcharge Media - Display/Select the Media to be assigned to the Surcharge.
• POS/EFT Receipt - Select from one of the Print options available. Also, if a full receipt option is required, select the Full Receipt option.
• Merchant Copy - Select from one of the Print options available.

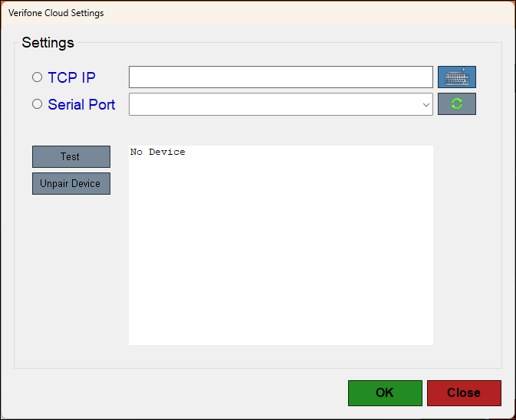

Verifone Cloud Settings Screen      ▲ ▼





• Select either one of the following and select/specify the appropriate details:
  • TCP IP - The TCP IP is collected from the Device. This can be done as follows:

    • Swipe down from the top of the device and press internet button, connect to Wi-Fi.

    • Select the connected Wi-Fi, scroll down to IP address and note the IP address.

    • Enter the IP address noted from the device.

    • Select Test to test.

  • Serial Port
• Test - Select to test the device.
• Unpair Device - Select to unpair the EFTPOS device.
• OK - Select to save changes and exit the screen.
• Cancel - Select to exit the screen without saving the changes.



End of Article      ▲
