      Web Server

      Touch



      web-server-1

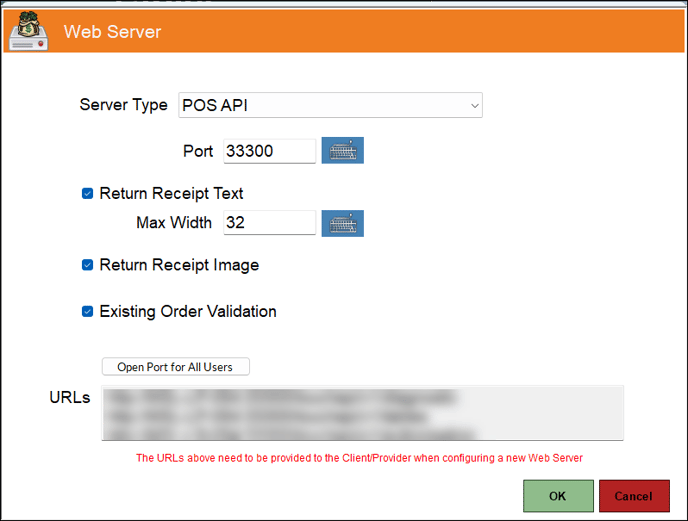

      To access select the Add New or Edit option in the Interface List menu option. Used to manage and configure Web Server type Interfaces in Touch.

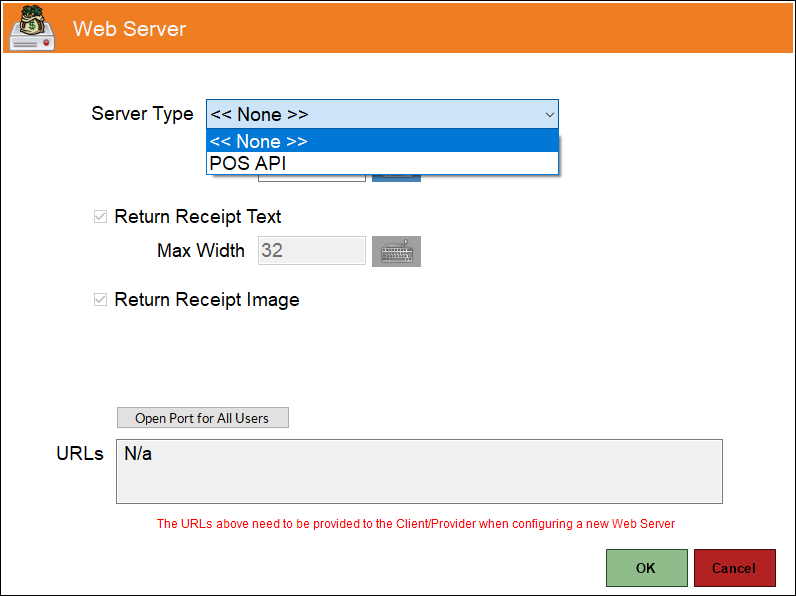

      • Server Type - Select from the drop-down list one of the following:
      • Port - Displays/Set the Port number.
      • Return Receipt Text - Displays/Set the:
        • Max Width - Maximum width to be applied to text in a receipt.
      • Return Receipt Image - Select to ensure an image of the issued receipt is returned.
      • Existing Order Validation - Select to ensure validation of the Sales/Orders processed via POS API to ensure they are unique and that no duplicate orders can be posted to Touch.



      IMPORTANT



      We recommend that this option be ENABLED for any Venue using OrderAway and/or TouchMini.



      Notes ...



      Currently the Existing Order Validation option only works with OrderAway  and TouchMini. However, in the future it will be expanded to include 3rd Parties.



      • Open Port for All Users - Select to ensure the Port is opened to all users. Once selected the URLs field below should be populated automatically with a list of URLs.
      • URLs - Lists the URLS that are needed to be provided to the Client provider when configuring a new Web Server. This list is automatically populated by selecting the Open Port for All Users option above.
