Interfaces

Touch



---

Subjects      ▼

• About
• How To
• Screens



---

About      ▲ ▼

Used to manage/view Interface configurations in Touch. Displays a list of currently configured Interfaces.

• What Is Required?
• What Is Supported?



What Is Required?      ▲  ▼

• Touch will need to be installed and operational.



What Is Supported?      ▲  ▼

The following lists the Interface Types that are configurable via the Interface List menu option, and which are currently supported in Touch. Select any one of them to view their list of Interfaces:

• Loyalty System
• Reservations System
• Sales Export
• Tab System
• Value Added Service
• Web Server



---

How To      ▲ ▼

• Add A New Interface?



How To Add A New Interface?      ▲ ▼

• Navigate to the Interface List menu option in the Terminal Settings menu in Touch.
• Select the Add New button.
• In the Add New Interface screen:
  • Enter a description in the Description setting that appropriately describes the Interface being added.
  • Select from the Interface Type drop-down list the type of Interface being added. Refer HERE for more information. Once selected, if further options are presented to be selected, make the appropriate selection. For example, an Available option will be presented if the Sales Export type is selected.
  • Select OK to add the Interface.
• Configure the Interface. Refer HERE for more information.



---

Screens      ▲ ▼

• Add New Interface
• POS Interfaces

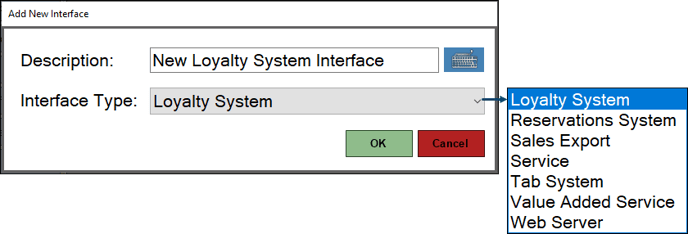

Add New Interface Screen     ▲ ▼





To access, select the Add New option in the Interface List menu option. Used when a Venue wants to add a new Interface in Touch.

• Description - Displays/Enter a description for the Interface being added.
• Interface Type - Select from the drop-down list of Interface types that are supported. Refer HERE for more information.

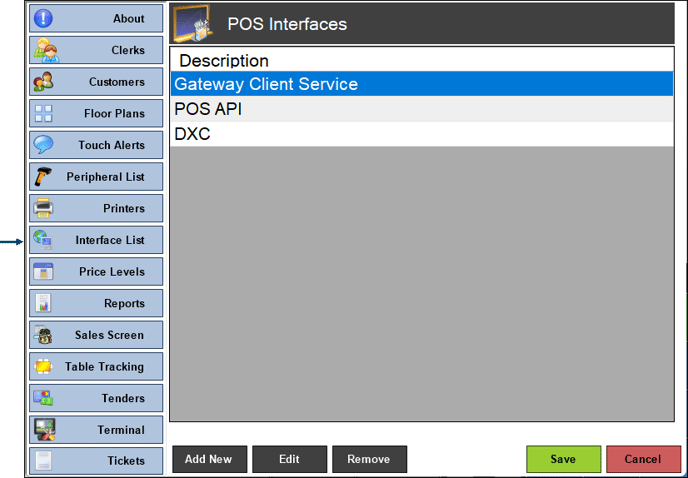

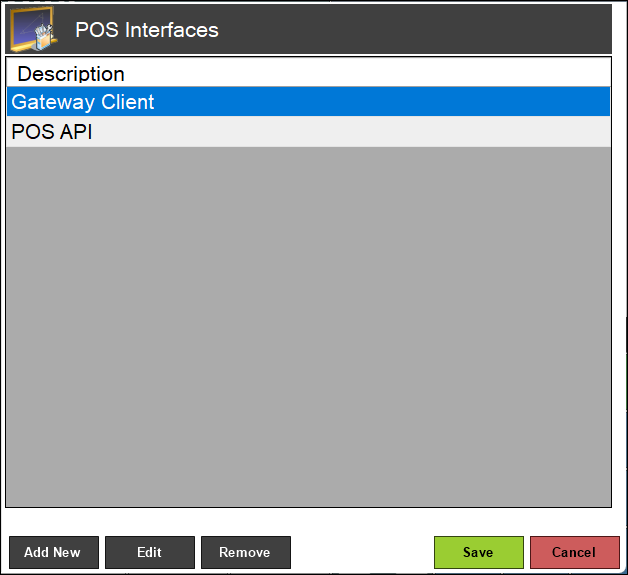

POS Interfaces Screen     ▲ ▼





To access, select the Interface List menu option in the Terminal Settings menu.  Used to manage/view 3rd Party Interface configurations in Touch. Refer HERE for more information.

• Add New - Select to open the Add New Interface screen to add an Interface.
• Edit - Select to edit the selected Interface.
• Remove - Select to remove the selected Interface. When selected a prompt will be displayed to confirm the removal of the selected Interface. If Yes is selected, then the following prompt will be displayed to ensure the mandatory entry of the Daily Code:





End of article.      ▲
