Touch - What To Consider
This provides a starting point for all things Pay@Table in Touch, as well as an overview of what is needed when considering its implementation.
Subjects ▲ ▼
About ▲ ▼
What Is It? ▲ ▼
Pay@Table provides Venues with the ability to be able to pay for Table Orders at the Table with an EFTPOS terminal, thus avoiding the need for patrons to have to go to the counter to pay.
What Is Required? ▲ ▼
- Swiftpos v10+
- Venues must have a current Software Enhancement Licence to use this feature.
What To Consider? ▲ ▼
- To use the PAY@TABLE feature at Touch one of the following EFTPOS type peripherals will need to be installed/configured at Touch, with their Pay at Table settings also configured:
- EFT08 - Tyro Payments
- EFT14 - PC-EFTPOS
- EFT33 - Linkly Food and Bev
- EFT37 - Spice
- Once installed and configured correctly, and after restarting Touch, the PAY@TABLE feature will be available for use.
- Ensure the EFTPOS terminal is on the same WiFi network. It won't work over 3G.
- Ensure Touch is restarted (in admin mode), once all configuration changes have been made.
- Ensure IP6 is not enabled on the default network adapter.
When Is It Used? ▲ ▼
To provide an alternative and more efficient means of paying for a Table Order in Touch.
Screens ▲ ▼

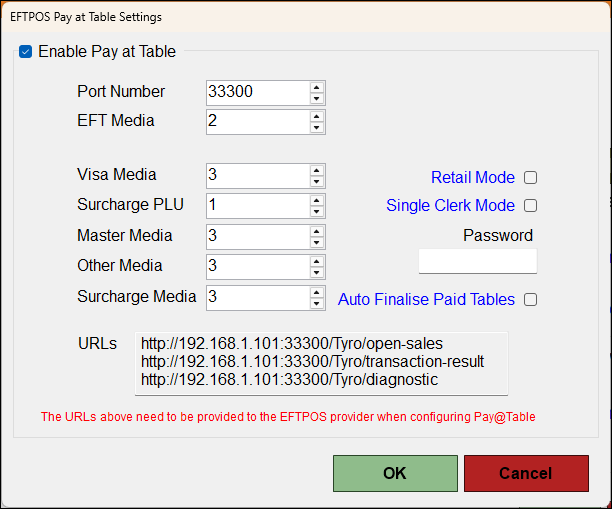

EFTPOS Pay At Table Screen ▲ ▼
To access, select the Pay at Table option if available in the settings screen of the selected EFTPOS Peripheral. For example, refer HERE. Used to configure the settings required to use the Pay at Table feature.
- Port Number - Port 33300 on the POS is allowed on firewall.
- EFT Media - To be continued ...
- Visa Media - To be continued ...
- Surcharge PLU - Displays/Select the PLU to be assigned to the Surcharge.
- Other Media - To be continued ...
- Surcharge Media - Display/Select the Media to be assigned to the Surcharge.
- URLs - These will be auto-filled once the OK button is selected.
Notes ...
Ensure the IP address is used and it is static. Do NOT the PC name.
- Retail Mode - To be continued ...
- Single Clerk Mode - To be continued ...
- Password - To be continued ...
End of article ▲
