Touch - Screens
To access, select the Receipt Messages option in the Receipt Printer screen. Used to configure Receipt settings in Touch.
Sections ▲ ▼
Tabs Section ▲ ▼

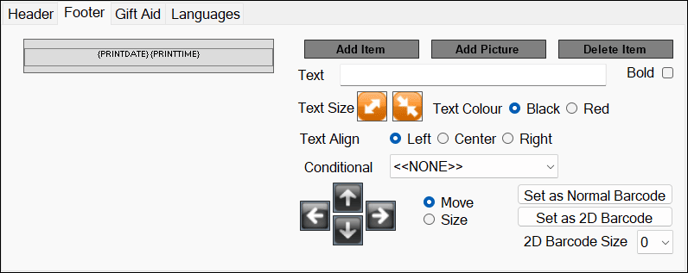

Footer Tab ▲ ▼
Used to configure the footer section of the Receipt. The options offered here are similar to those outlined in the Header section. Refer HERE for more information.

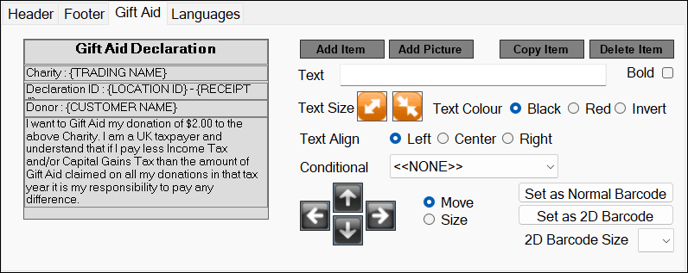

Gift Aid Tab ▲ ▼
Notes ...
This tab will only be visible if the Enable Gift Aid for Terminal option is selected in Touch.
Used to configure the Gift Aid declaration to be printed as part of the Receipt. The options offered here are similar to those outlined in the Header section. Refer HERE for more information.

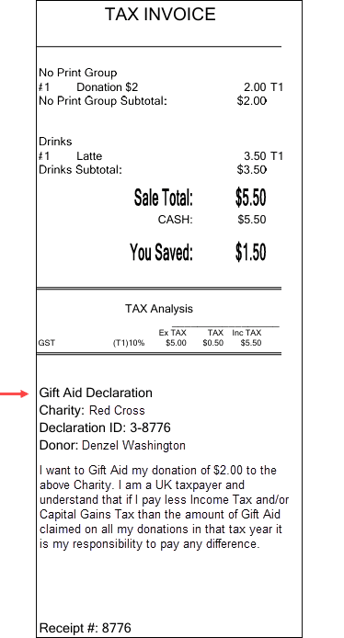

Example

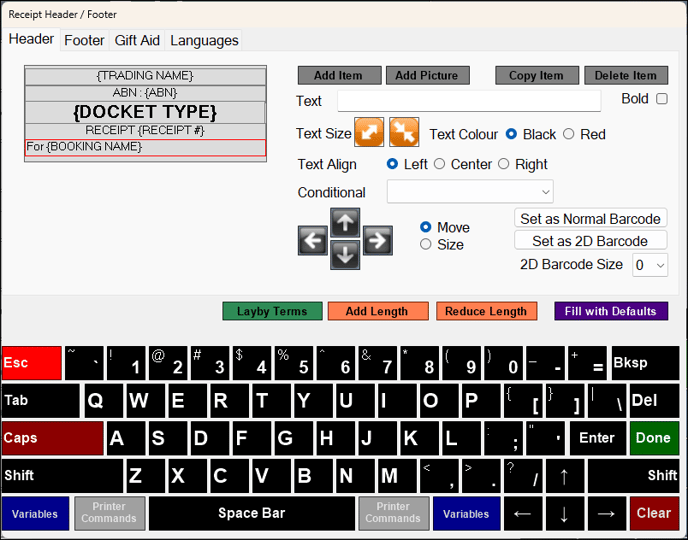

Header Tab ▲ ▼
Used to configure the header of the Receipt.
- Add Item - Select to add an Item/Print Field/Variable to the docket. The item is added with default settings and size. Refer HERE for more information.
- Add Picture - Select to add an image from their computer to the docket. The maximum width in pixels is 420. Once added the Picture will be stored within Swiftpos, thus not requiring the original to be kept
- Copy Item - Select to copy the currently selected item
- Delete Item - Select to delete the currently selected item. Both Picture and Text items can be deleted.
- Item Details - Below is a list of item details that are available for edit:
- Text - Select to adjust the text that will appear in the item. Can be used to add dynamic text like Table Number or Customer Name. Text entered cannot exceed 4000 characters.
- Bold - Select to ensure the test is displayed as bold.
- Text Size Buttons - Select to adjust the text size of the item.
- Text Colour - Select from the following to set the colour of the text:
- Text Align - Select to adjust the alignment of the item.

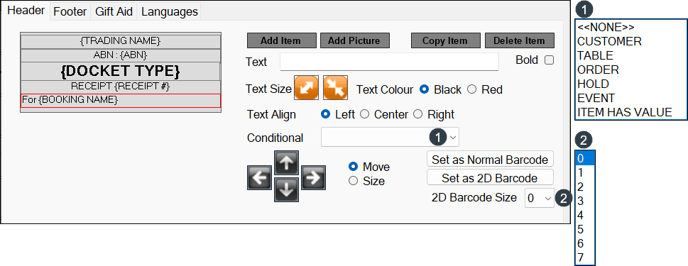

- Conditional - Select from the drop-down list to add one of the following conditions to the currently selected item:
- CUSTOMER - Select to ensure that the selected item will only be printed if the Order/Sale has a Customer/Member associated with it.
- TABLE - Select to ensure that the selected item will only be printed if the Order/Sale related to a Table.
- ORDER - Select to ensure that the selected item will only be printed if the Order/Sale is related to a Phone/Web Order.
- HOLD - Select to ensure that the selected item will only be printed if this is a Held Order/Sale.
- EVENT - Select to ensure that the selected item will only be printed if the Order/Sale is related to an Event.
- ITEM HAS VALUE - Select to ensure that the selected item will only be printed if ANYONE of the Print Fields entered into the Text field above, has a value. If all of then DO NOT have a value, then the selected item will NOT be printed. Note : This only applies to any text type Print Field. For example, {Booking Name} {Clerkname}. It does NOT apply to Print Fields that are numbers.
Notes ...
It is recommended that items that have conditions should appear on a line on their own OR if necessary, share a line with another item that has the same condition. This of course does not apply to the NOT Empty condition.
- Item Details continued ...
- Move and Size Arrows - Select to adjust the size and position of the item on the docket.
- Set as Normal Barcode - Select to ensure the selected item is printed as a normal barcode on the receipt.
- Set as 2D Barcode - Select to ensure the selected item is printed as a 2D barcode on the receipt.
- 2D Barcode Size - Displays/Set the size the 2D barcodes will be printed at.

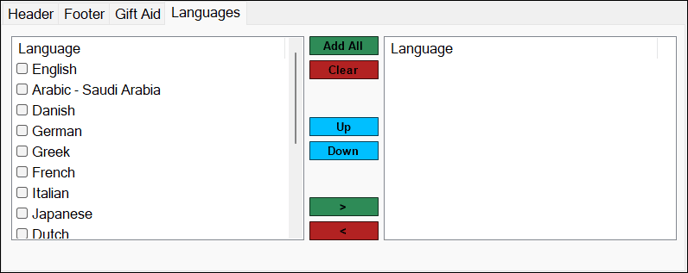

Languages Tab ▲ ▼
Used to select what languages are printed on each of the Peripherals. If none is selected, then English will be printed by default. To enable multiple languages at Touch terminals, additional files will need to be downloaded and ensure the Support Multiple Languages option is selected in the Clerks Settings.

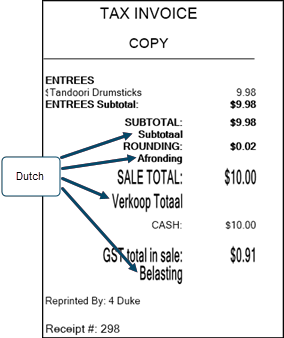

The ability to print dual Languages on Receipts has been added. For example, in the Receipt below, Dutch has been selected as the dual language.
The translations of the Receipt Items being printed can be configured HERE.
Tab Options Section ▲ ▼
- Layby Terms - Select to add Terms/Conditions relating to Laybys that need to appear on printed dockets.
- Add Length - Select to increase the length of the docket.
- Reduce Length - Select to reduce the length of the docket.
- Fill with Defaults - Select to clear all items in the Header/Footer sections and then insert the default items onto the docket. The defaults are determined by your current Software Registration.
