ResDiary
ResDiary provides instant online reservations and verified diner reviews at restaurants worldwide. Find restaurants in London, Dublin, Auckland, Bali, Edinburgh, Hong Kong, ...
This interface provides Venues with the ability to manage/view Reservations that have been made using the ResDiary Reservations System.
Subjects ▼
To Be Considered ▲ ▼
- ResDiary is only connected to the Location where the Table Tracking Master terminal has the ResDiary details configured.
- Tables created at Touch using the Table (#30) POS Key will show in ResDiary as a Walk In.
- It is recommended to create Reservations using ResDiary and then action them further using the 3rd Party Reservations (#460) POS Key in Touch. Also, Walk-ins created in ResDiary are considered to be seated and are passed as such to Touch.

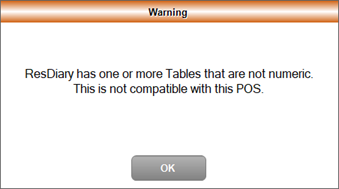

- The following message may be displayed:
Notes...
The above message is displayed to warn that the ResDiary application being Interfaced with has one or more Tables that have non-numeric Table numbers. Non-numeric Tables numbers are NOT SUPPORTEDin swiftpos. It is therefore recommended to ONLY make Reservations in ResDiary to Tables that have numeric Table numbers. If a Reservation is made in ResDiary for an alphanumerically numbered Table, the same Table will not show in the Reservations screen when using the 3rd Party Reservations POS Key.
What Is Required? ▲ ▼
- Venues will need to be registered for Third Party Reservations for access to this feature.

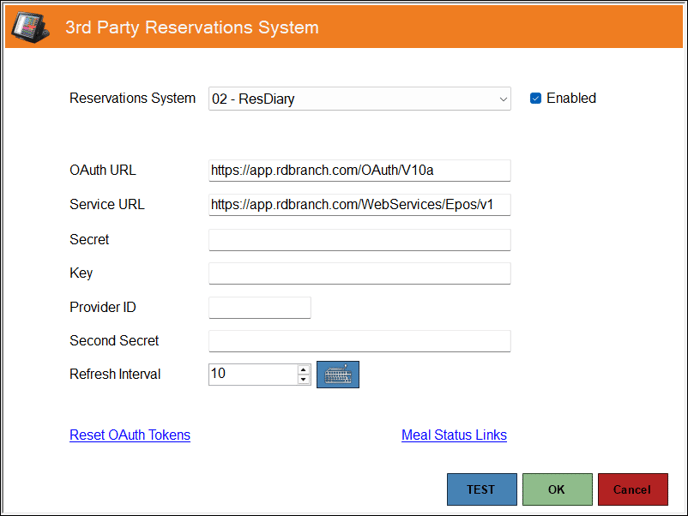

- Ensure ResDiary is added as a Reservations System Interface Type to the list of Interfaces in Touch.
- Ensure 3rd Party Reservations (#460) POS Key is added to the appropriate Keyboard Layout using the Designer. Refer to How To Add A POS Key To A Keyboard Layout for more information.
Setup ▲ ▼
To be continued ...
End of article. ▲
