Membership / Loyalty

Prime S7000

3rd Party Integration with swiftpos NetPOS

Refer HERE for Reseller & Support information.



This outlines the information and the steps that are needed to familiarise oneself with the Prime S7000 interface.

The content is targeted at Resellers and swiftpos Venue Administrators who have a sound knowledge of and experience with swiftpos. For further information or assistance, please contact your swiftpos Reseller or swiftpos Support.




Subjects




Screens

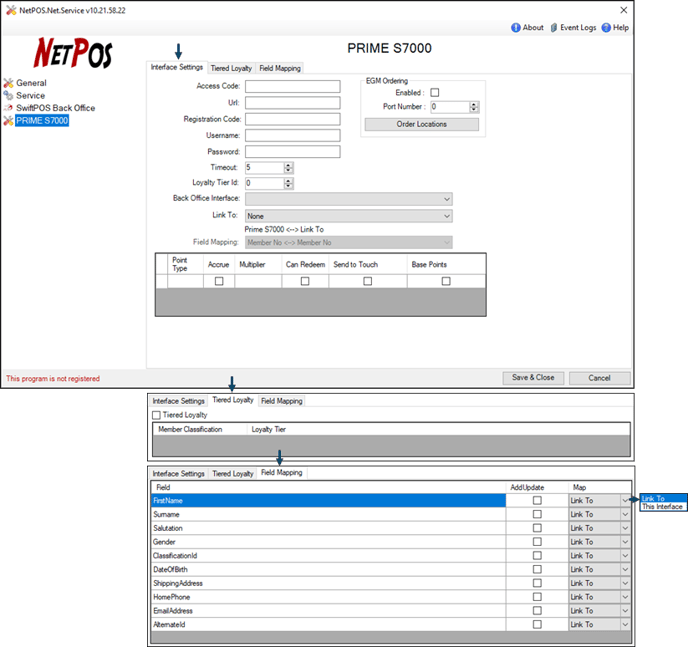

NetPOS Prime S7000 Settings Screen



prime-s7000-1



To access refer to How To Access The NetPOS Menu for more information. A NetPOS Registration for the Prime S7000 interface will be required in order to access this screen. Used to configure the settings required to implement the Prime S7000 interface.



Notes ...


Loyalty Tier ID = Prime AnalysisID.



  • Point Type - The Point Type as provided by Aristocrat
  • Accrue - Select whether this Point Type can accrue
  • Multiplier - The multiplier at which the points accrue if accrue box is ticked.
  • Can Redeem - This point type can be redeemed.
  • Send to Touch - Send this points account to swiftpos Touch
  • Base Points - This option will use this multiplier for all members regardless of their Classification multiplier. If it is unticked, both multipliers will apply to the Members points accruals.
  • EGM Ordering - The EGM ordering settings are all configured in the Order Locations screen, where you can setup masking for the machine numbers which result in the messages being routed to the appropriate table tracking database which then results in the master terminal in each location turning them into remote orders. Requires Registrations as per the Price List.



Notes ...


Aristocrat have to change the protocol for the POS pager they setup to UDP not TCP.



EGM Number is displayed on the Order Printer using the Booking Name field - Ensure there is nothing conditional set against this field that would prevent this from Printing.

End of article
