Odyssey

3rd Party Integration with swiftpos NetPOS

Refer HERE for Reseller & Support information.

This outlines the information and the steps that are needed to familiarise oneself with the Odyssey interface.

The content is targeted at Resellers and swiftpos Venue Administrators who have a sound knowledge of and experience with swiftpos. For further information or assistance, please contact your swiftpos Reseller or swiftpos Support.

Subjects      ▼

• Screens

Screens      ▲ ▼

• NetPOS Odyssey Settings

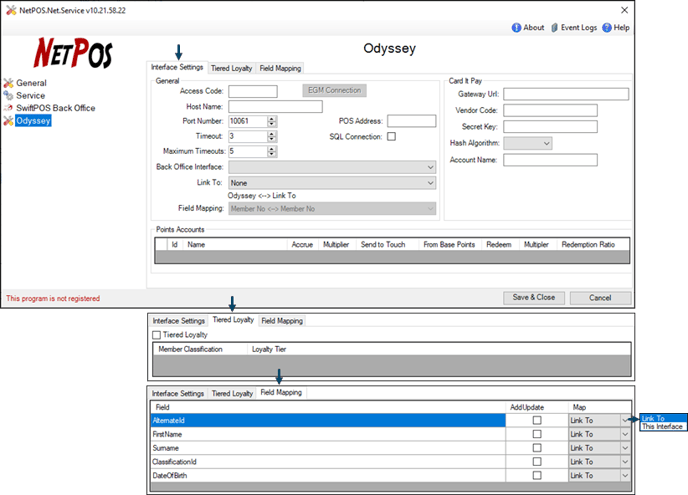

NetPOS Odyssey Settings Screen      ▲ ▼

To access refer to How To Access The NetPOS Menu for more information. A NetPOS Registration for the Odyssey interface will be required in order to access this screen. Used to configure the settings required to implement the Odyssey interface.

General Section

• Host Name - Enter the Host Name or IP Address of the Third Party system.
• Port number - The Port Number for communicating to the Third Party.
• Timeout - The Timeout in Seconds for communicating with the Third Party.
• Maximum Timeouts - The number of retries on a timeout before it fails.
• POS Address - Enter the POS Address supplied by the Third Party.
• SQL Connection
• Link To - Link to another supported interface.
• Field Mapping - Select the mapping to use with the Link To interface.

Card It Pay Section

Enter the details provided by Odyssey for your site's particular configuration.

Points Accounts Section

• Accrue - Determines if this account will accrue points.
• Multiplier -Points Multiplier used for each account.
• Can Redeem -Points on this account can be redeemed in a sale.
• Send to Touch - Sends this account to Touch.
• From Base Points - Ignores any swiftpos Classification or Location points multipliers.
• Redemption Ratio - (swiftpos v9 Only) overrides the Redemption Ratio to be used for this Points Pool. This feature is not compatible with Points Pay.

End of article      ▲
