      Micros XML-POS

      Touch



      Subjects      ▼



      About      ▲ ▼



      To Be Considered      ▲ ▼

      • Each time a new Location is created in swiftpos Back office it needs to be configured in the costing centres in Opera PMS. As a rule, when a Location is created in swiftpos, a corresponding cost centre MUST BE created in Opera. if there are going to be room charges in that Location.
      • You can only have a maximum of four Master Groups in swiftpos linked to the Opera Front Office. For example, Food, Beverage, Retail and Other.



      What Is It?      ▲ ▼

      The  Micros Fidelio XML-POS is a swiftpos NetPOS interface that is used to interface with Oracle's  cloud-based property-management systems (PMS) Opera. Refer HERE for more information.



      What Is Required?      ▲ ▼

      • Micros-Fidelio XML-POS Specification v1.08+ (released February 1, 2012) for MICROS OPERA
      • A NetPOS registration with the Micros Fidelio (XML-POS) interface selected.
      • A Local Area Network connection between the POS PC and the Front Office Software.



      How To?      ▲ ▼



      How To Get Started?      ▲ ▼

      • Provide list of all the swiftpos Locations to Micros, that will be posting sales. That includes IDs & Names. This is to ensure these are configured as cost centres in their system.
      • Confirm Micros have a Waiter ID configured that will match with the one you enter in the Interface setup in NetPOS.
      • Configure the Serving Times.
      • Micros will provide the Host Name/IP as well as the Port Number to connect to.
      • Ensure the Room Charge (#59) and Room Lookup (#115) POS Key s are added to the appropriate Keyboard Layout using the Keyboard Designer in the swiftpos Back Office.
      • Ensure the Customer setup for the Micros XML-POS interface in NetPOS is marked as Primary Validation and Search.
        • # = Room Number
        • Code = Reservation ID
      • Use the Room Lookup (#115) POS Key to search for a room by name or room number.
        • # = Room Number
        • Code = Reservation ID
      • Use the Room Charge (#59) POS Key to charge the room. Charges will record as Media 150 in swiftpos Back Office. The charge is Live, so the charge will be processed immediately.
        • # = Room Number
        • Code = Reservation ID
      • Micros XMLPOS allows Orders/Sales to be charged to a Room using the swiftpos API.



        Screens      ▲ ▼

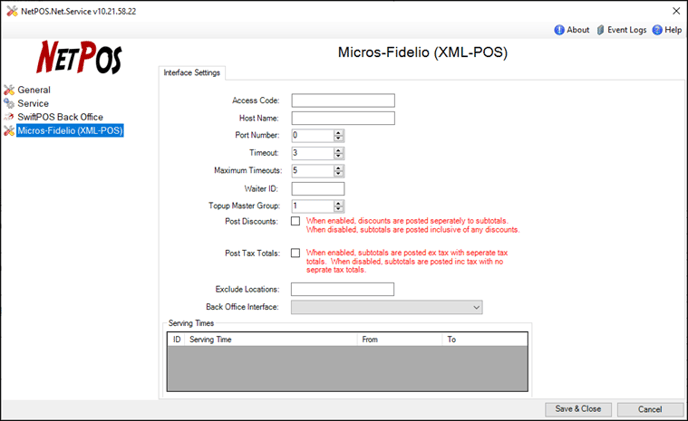

        micros-xml-pos-1



        To access, refer HERE and then select Settings option from the NetPOS menu. Then select the Micros Fidelio (XML-POS) option on the left-hand side of the screen. Used to configure the settings for the Micros XML-POS interface.



        NOTEWORTHY
        • Host Name - Displays/Enter the name as provided by Micros.
        • Port Number - Displays/Enter the number as provided by Micros.
        • Waiter ID - Displays/Enter the ID. Ensure this ID is provided to Micros, to ensure they have a Waiter ID configured that will match the ID entered here.
        • Top-up Master Group - Displays/Enter the Master Group ID to post to for Account Payments.
        • Exclude Locations - Displays/Enter the Location IDs to be excluded from sending Non-room charge transactions. Enter Location IDs separated by a comma.Serving Times - Displays/Configure the serving times that will apply to the Venue. For example,
          • Breakfast
          • Lunch
          • Dinner
          • Snacks or Other (for everything outside the first three)

        End of Article      ▲
