3rd Party Integration with swiftpos Service Monitor
This outlines the information and the steps that are needed to familiarise oneself with the with the Member / Voucher Import interface in Service Monitor.
Subjects ▼
About ▲ ▼
Import File Specification ▲ ▼
File
| ATTRIBUTE | VALUE |
COMMENTS |
| Name | XX_MemberVoucherExtract.txt |
Where XXX is any value to keep track of files. For example, 001, 002, etc. |
| Extension | TXT | Once imported the file's extension will be renamed from .txt to .processed |
| Type | Delimited |
The '|' character is used as a delimiter. |
| Processing Interval | 30 seconds |
This is the default interval. |
Fields
| FIELD | REQUIRED | DATA TYPE |
COMMENTS |
EXAMPLE |
| Voucher ID | Yes | Number |
Must be listed as the ID of an existing Voucher in the Vouchers screen. |
1 |
| Mapping String | No | Text |
Maximum of 1000 characters allowed. Can be used for a 3rd Party provided Barcode. |
987654321 |
| Stored Value | No | Amount |
|
50.00 |
| PIN | No | Text |
Must be 4 characters long and only contain numbers. |
0123 |
| Start | No | Date/Time | If empty or invalid, use the Issue Start Date of the SwiftPOS Voucher. | 1/07/2024 0:00 |
| Expires | No | Date/Time | If empty or invalid, use the Issue Start Date of the SwiftPOS Voucher. | 31/07/2024 23:59 |
| Member No | No | Number | Whole number with a maximum of 9 digits allowed. Notes ... This is only used to identify a Member, when the Create / Update Member option is selected in the Member / Voucher Import settings screen. If the number imported here is left blank, then use the next Member Number in SwiftPOS when creating a new member. If in the Member / Voucher Import settings screen, the Member Number field is selected in the Member Identifier drop down list, then the number imported here will be used to match to the SwiftPOS Member No. |
2 |
| Member Card / Alternate ID | No | Number |
Whole number with a maximum of 64 digits allowed. Notes ... If in the Member / Voucher Import settings screen, the Alternate ID field is selected in the Member Identifier drop down list, then the number imported here will be used to match to the SwiftPOS Member Alternate ID. If no import number is specified here, then the Voucher will NOT be assigned to a Member. |
11012 |
| External Sync ID | No | Number | Whole number with a maximum of 64 digits allowed. Notes ... This is only used to identify a Member, when the Create / Update Member option is selected in the Member / Voucher Import settings screen. If the number imported here is left blank, then use the next Member Number in SwiftPOS when creating a new member. If in the Member / Voucher Import settings screen, the External ID field is selected in the Member Identifier drop down list, then the number imported here will be used to match to the SwiftPOS Ext Sync ID. If no import number is specified here, then the Voucher will NOT be assigned to a Member. |
2345678901234 |
| Classification | No | Number | Must be listed as the ID of an existing Classification in the Member Classifications screen. Notes ... This is only required when the Create / Update Member option is selected in the Member / Voucher Import settings screen, and a Member is being created. It does NOT APPLY when updating a Member. |
1 |
Example
| VALUE |
| 25||||2024-03-01 00:00|2024-03-08 00:00||8832|10032||Homer|Simpson
26||||2024-03-01 00:00|2024-03-08 00:00||8833|10033||Mary|Jones |
What Is It? ▲ ▼
The Member / Voucher Import interface is used to import vouchers into the Voucher Ledger and assign the Voucher to a Member if the Member Number is included in the import file. It will also provide the option of creating/updating Members.
Notes ...
By default the import will use the settings configured for the Voucher in SwiftPOS if NOT provided in the imported file.
Screens ▲ ▼

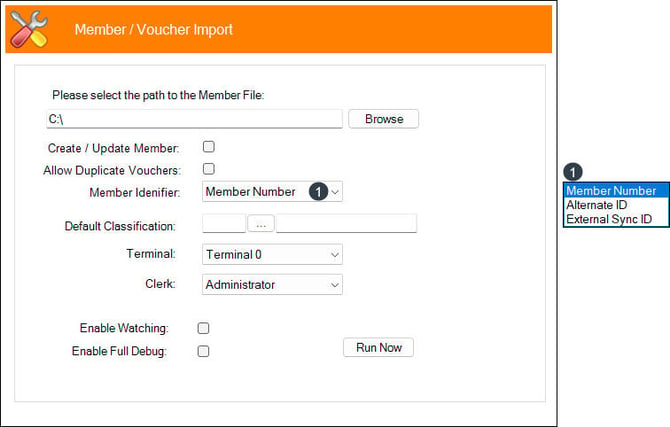

Member / Voucher Import Screen ▲ ▼
To access refer to How To Access The Service Monitor for more information. Used to configure the settings required for swiftpos Media Schedules.
-
Please select the path to the Member File - Displays/Enter the path and file name of the file to import.
-
Create / Update Member - Select to allow Member to be created/updated in SwiftPOS.
-
Allow Duplicate Vouchers - Select to allow the duplication of Vouchers.
-
Member Identifier - Select from the drop-down list of available fields.
-
Default Classification - Select the select button to open the Search Membership Classifications screen and locate and select the appropriate Classification to be used as the default when creating Members.
-
Terminal - Select from the drop-down list of available Terminals.
Notes ...
The terminal is recorded against the creation of the Voucher transaction. Using a specific terminal may make it easier to find vouchers created by the import process.
-
Clerk - Select from the drop-down list of available Clerks.
-
Enable Watching - Select to enable the Service Monitor to watch for activity.
-
Enable Full Debug - Select to enable. This should only be enabled when recommended.
-
Run Now - Select to run the import.
