      Konami

      3rd Party Integration with swiftpos NetPOS and Service Monitor

      Refer HERE for Reseller & Support information.



      This outlines the information and the steps that are needed to familiarise oneself with the Konami interface.

      The content is targeted at Resellers and swiftpos Venue Administrators who have a sound knowledge of and experience with swiftpos. For further information or assistance, please contact your swiftpos Reseller or swiftpos Support.



      Subjects      ▼



      Screens      ▲ ▼

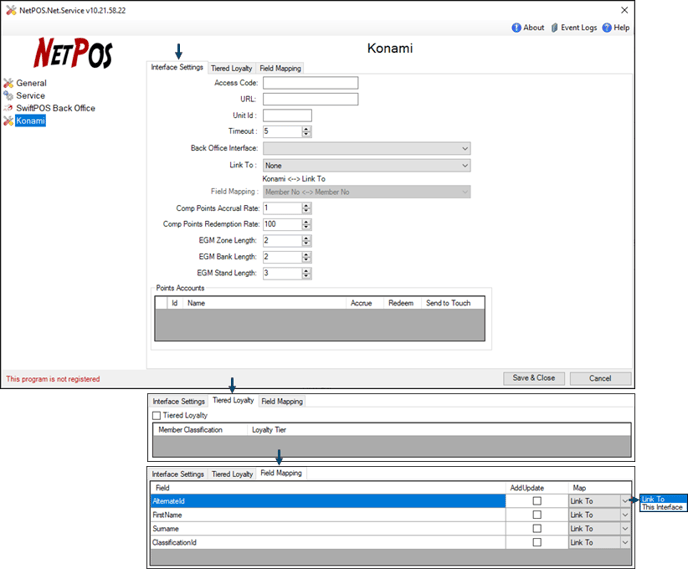

      NetPOS Konami Settings Screen      ▲ ▼



      konami-1



      To access refer to How To Access The NetPOS Menu for more information. A NetPOS Registration for the Konami interface will be required in order to access this screen. Used to configure the settings required to implement the Konami interface in NetPOS.

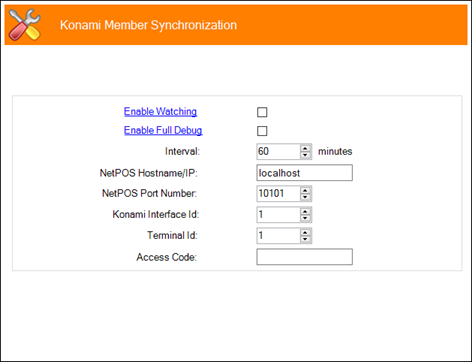

      Service Monitor Konami Member Synchronisation Screen      ▲ ▼

      konami-2



      To access refer to How To Access The Service Monitor for more information. Used to configure the settings required for the Konami Member Synchronisation interface in Service Monitor.

      The Service Monitor calls the Konami interface in NetPOS to get a list of Members that have changed since the last time it was run. It will then create/update the Members in SwiftPOS Back Office as required. The PlayerId field from Konami is used in MemberTable.ExternalSyncID in SwiftPOS.

      If the Konami interface is used with Member Syncing, then you will want to have the field mapping in the NetPOS interface settings set to Alt ID <> Alt ID, which maps the Konami Card Number to the Member's Alternate ID in SwiftPOS.



      Notes ...



      • The NetPOS Create New Members and Update Existing Members options in NetPOS > SwiftPOS Back Office Settings do NOT need to be enabled, if Member Syncing is being enabled via Service Monitor.
      • Also, when first going live with Konami, the Member change date in Konami will need to be updated to ensure all Members are synced with the SwiftPOS Back Office.  If this is not done, then Members will only trickle down to SwiftPOS Back Office when they are modified.



      End of article      ▲
