IGT Member Synchronisation
3rd Party Integration with swiftpos Service Monitor
This outlines the information and the steps that are needed to familiarise oneself with the IGT Member Synchronisation interface in Service Monitor.
Subjects ▼
About ▲ ▼
What Is It? ▲ ▼
The IGT Member Synchronisation interface is used to manually import Members by either creating or updating existing Members. Files to be imported need to be named as follows: DDMMYYYY_ PlayerExtract.CSV where DDMMYYY is a date. For example, 01012015_PlayerExtract.csv.
Refer HERE for file specification information.
Screens ▲ ▼

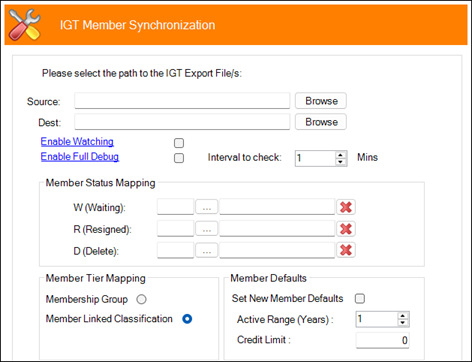

IGT Member Synchronisation Screen ▲ ▼
To access refer to How To Access The Service Monitor for more information. Used to configure the settings required for the IGT Member Synchronisation interface.
-
Source - Displays/Select the source folder. This is usually a folder on the IGT Server.
-
Dest - Displays/Select the destination folder. This is usually a local folder.
-
Enable Watching - Select to enable watching of the folder. It is recommended this is enabled to ensure the Service Monitor will constantly monitor the Path (selected below) and import any new files placed in it automatically.
-
Enable Full Debug - Select to enable. Selecting this option will ensure imported files are renamed and NOT deleted. Imported files will be renamed as follows: DDMMYYYY_ PlayerExtractYYYYMMDDHHMMSSsss.Processed where YYYYMMDDHHMMSSsss is the date/time the file was imported. For example, 01012015_PlayerExtract20150804153814735.Processed.csv. Note : This option should only be enabled when recommended.
-
Interval to check (Mins) - Displays/Set the time in minutes.
Member Status Mapping Section
IGT Members are imported with 3 possible statuses. Assign a Classification to each of the 3 statuses to ensure Members imported are defaulted with the appropriate Classification. The statuses are:
-
- D (Delete)
- R (Resigned)
- W (Waiting)
Notes ...
If NOT configured, imported Members will set to the default Classification. The file format used for this import is the Micropower Format.
Member Tier Mapping Section
Select from one of the following what the Member tier mapping is to be based on:
- Membership Group
- Member Linked Classification
-
Set New Member Defaults - Select to ensure the defaults set below are used as default settings for all Members imported. Note : If NOT set, imported Members will be imported with and Active From/To Date of 01/01/1970 respectively and the Credit Limit field will be left blank.
-
Active Range (Years) - Set to ensure the Active From/To dates will be determined for all imported Members.
-
Credit Limit - Set to ensure the Credit Limit will be set to the value set here for all imported Members.
-
End of article ▲
