      Clipp Tab

      3rd Party Integration with Touch

      This outlines the information and the steps that are needed to familiarise oneself with the Clipp Tab interface.

      The content is targeted at Resellers and swiftpos Venue Administrators who have a sound knowledge of and experience with swiftpos. For further information or assistance, please contact your swiftpos Reseller or swiftpos Support.



      Subjects      ▼



      Screens      ▲ ▼

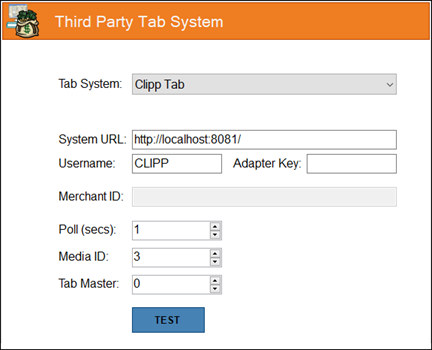

      Touch Clipp Tab Settings Screen      ▲ ▼



      clipp-tab-1



      To access, select the Clipp Tab option in the Tab System drop-down list. Used to configure/view the Clipp Tab interface configuration in Touch.

      • Merchant ID - Not Used

      • System URL - This needs to be the location of the Clipp adapter service. Usually http://localhost:8081

      • Username - CLIPP

      • Password - Password comes from the Adapter Key in the Clipp pos adapter. This is a 10 digit alphanumeric key

      • Poll (secs) - Recommended to set to 1 second.

      • Media ID - Displays/Enter the default Media Type ID to be used to process the payment in the SwiftPOS Back Office.

      • Tab Master - Displays/Enter the Terminal ID of the Table Tracking Master Terminal.



      End of article      ▲
