Export / Import Keyboards

Back Office - How To

This outlines How To Export / Import Keyboards in Back Office.

In Back Office select the Keyboards menu option in Touch Settings, then:

Select the Keyboards option in the Touch Settings menu, to open the Keyboards screen.
Select the Keyboards menu in the Toolbar.
Select the Open Keyboard option in the footer section, to open the Touch Keyboards screen.
Select the Keyboard to be exported.
Select the Export Keyboard to File option in the Keyboard menu in the Toolbar, to display the Save As screen in File Explorer.
In the Save As screen select a folder in which to save the exported xml file (Keyboard Export.xml) and select Save.

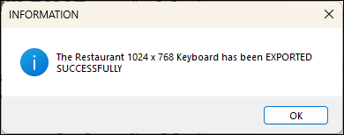

A prompt will be displayed confirming the export. For example:

keyboards-24-1

Notes ...

Only Keyboards of the same template styles can be exported/imported.

In Back Office select the Keyboards menu option in Touch Settings, then:

Ensure NO Keyboard is currently open.
Select the Keyboards menu in the Toolbar.
Select the Import Keyboard from File (No Products) option in the Keyboards menu in the Toolbar , to display the Open screen in File Explorer.
Navigate to the folder that contains the XML file of the exported Keyboard (Keyboard Export.xml) to be imported and select the XML file. Refer HERE for more information.
In the Touch Keyboards screen, select the Keyboard from those displayed in the grid.
Select Done.

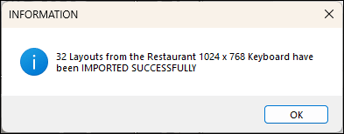

The selected Keyboard will be imported, at the end of which a prompt will be displayed confirming the import. For example:

keyboards-25

Confirm the following:
- No Product POS Keys were imported.
- All Layouts and Multi Link POS Keys are linked correctly.
- All Fixed Layouts were imported and appear correct.
- The HOME Layout is set correctly.
Add and assign Product POS Keys to the Layouts where appropriate.
